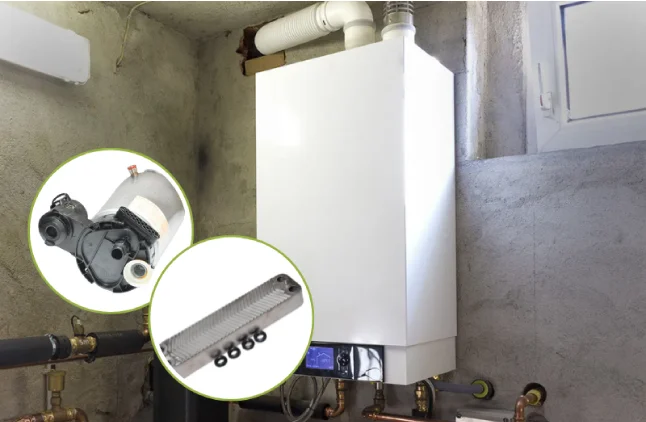

What is a Heat Exchanger in a Boiler?

Think of it as a sophisticated pipe system that allows hot gas from your boiler's burner to heat the water in your heating system efficiently.

The basic principle involves a coiled pipe through which water flows. Hot flue gases from the burner pass over the surface of this pipe, transferring heat to the water as it travels through the system. This method is far more efficient than simply mixing hot and cold water together.

How Does a Boiler Heat Exchanger Work?

When your boiler fires up, gas is burned to create hot gases that can reach temperatures of up to 250°C. These gases rise and reach the heat exchanger, where they're pushed through the coiled pipe system. The cold water surrounding the pipe absorbs this heat as the hot gas moves through the system.

Once heated, the water is ready to be pumped to your radiators and taps throughout your home. The beauty of this system lies in its efficiency – the heat exchanger maximises the transfer of thermal energy while keeping the combustion gases separate from your water supply.

If your boiler’s heat exchanger isn’t heating water as it should, it’s best to call in the professionals for a reliable boiler repair service you can trust.

More Than Just Boilers

While boilers are the most common place you'll find a heat exchanger at home, warming the water that flows through your radiators and taps, these components are used everywhere:

• In swimming pools, to keep the water at just the right temperature
• In buses and planes, recycling engine heat to warm the passenger cabin
• Even in industrial settings, recovering heat that would otherwise go to waste

And they don't just heat, they can cool, too. Your fridge and air conditioner also rely on heat exchangers to draw heat out and keep things cold.

Why It Matters in Your Boiler

In your combi boiler, the heat exchanger is the reason hot water comes out of your taps and your radiators feel toasty on a winter's day. Without it, the boiler would simply be unable to do its job, making it one of the most crucial components of your heating system.

Types of Heat Exchangers in Combi Boilers

Combi boilers typically contain two distinct heat exchangers, each serving a specific purpose:

Heat Exchanger Materials: Stainless Steel vs Aluminium

Heat exchangers must withstand intense heat and pressure, making the choice of material crucial for both longevity and performance.

Stainless Steel Heat Exchangers

Stainless steel heat exchangers are the premium choice for several reasons:

• Superior corrosion resistance: The high chromium content provides excellent protection against rust and corrosion
• Extended lifespan: These units typically last longer than aluminium alternatives
• Higher durability: Can withstand extreme temperatures and pressure variations
• Self-cleaning properties: Reduced maintenance requirements
• Higher flow rates: Allow faster heating and reduced blockage risks

Aluminium Heat Exchangers

Aluminium heat exchangers offer different advantages:

• Lightweight construction: Easier installation and less structural stress
• High thermal conductivity: Efficient heat transfer properties
• Cost-effective: Generally cheaper than stainless steel options
• Compact design: Often smaller than stainless steel variants
• Corrosion resistance: Designed to resist corrosion over the product's design life

Condensing vs Non-Condensing Boilers

The type of boiler you have affects how your heat exchanger operates:

Non-Condensing Boilers

Hot waste gases are expelled through the flue without being recycled, resulting in energy waste and higher running costs. New installations of non-condensing boilers are no longer permitted in the UK due to efficiency regulations.

Condensing Boilers

They extract maximum energy from flue gases by using a longer coil system, allowing more energy transfer to the water. This results in minimal energy loss through the flue and significantly improved efficiency ratings.

How Much Does a Boiler Heat Exchanger Cost?

The replacement cost of a boiler heat exchanger varies depending on several factors:

• Material type: Stainless steel units typically cost more than aluminium
• Boiler brand and model: Premium brands may have higher-priced components
• Labour costs: London rates may be higher than those in other regions
• Complexity of installation: Difficult access can increase labour time

Typically, you can expect to pay between £300 and £800 for the part, plus installation costs.

However, if your boiler is older, it's a wise decision and cost-effective to replace the entire unit rather than just the heat exchanger.

How Long Do Boiler Heat Exchangers Last?

The lifespan of your heat exchanger depends on several factors:

• Material quality: Stainless steel units typically last 15-20 years
• Water quality: Hard water areas may experience more limescale buildup
• Maintenance frequency: Regular servicing extends component life
• Usage patterns: Constant use may reduce lifespan

With proper maintenance, a quality heat exchanger should last the lifetime of your boiler.

Faulty Heat Exchanger Symptoms

Recognising early warning signs can help you address problems before they become costly repairs:

Strange Noises

• Kettling: High-pitched whistling sounds indicate limescale buildup
• Tapping or banging: Often caused by central heating sludge and debris
• Gurgling: May indicate air in the system or partial blockages

Water Leaks

• Visible water around the boiler: Could indicate a cracked heat exchanger
• Internal boiler leaks: These leaks are harder to spot, but cause efficiency loss
• Pressure loss: Regular pressure drops might indicate internal leaks

Dirty Radiator Water

When bleeding radiators, black or discoloured water indicates central heating sludge. Such contamination can lead to significant damage, not only to the heat exchanger but to your entire heating system, potentially resulting in costly repairs and reduced efficiency.

Reduced Efficiency

• Longer heating times: Your home takes longer to warm up
• Higher energy bills: Reduced efficiency increases running costs
• Uneven heating: Some radiators remain cold while others heat normally

How to Clean Your Boiler Heat Exchanger?

Regular cleaning maintains efficiency and extends your heat exchanger's lifespan. However, this work must be performed by a Gas Safe registered engineer.

A qualified engineer will:

1. Isolate the system: Safely shut down and isolate the boiler
2. Remove the heat exchanger: Carefully extract the component
3. High-pressure cleaning: Use specialised equipment to remove debris
4. Inspect for damage: Check for cracks, corrosion, or wear
5. Reassemble and test: Ensure proper operation before completion

Preventing Limescale Buildup

• Install a limescale reducer: It acts as a filter to prevent buildup
• Use a limescale silencer: It helps remove existing buildup
• Consider water softening: Particularly beneficial in hard water areas

Managing Central Heating Sludge

• System flush every 5 years: Removes contamination and debris
• Install a magnetic filter: Catches debris before it reaches the heat exchanger
• Use system cleaners: Chemical treatments can help prevent sludge formation

How Many Heat Exchangers Are in a Combi Boiler?

Most combi boilers contain two heat exchangers:

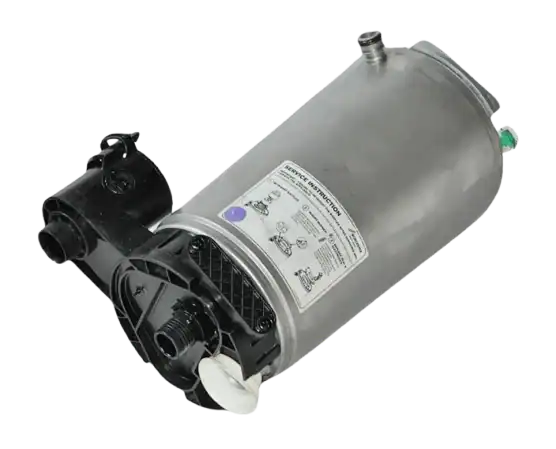

1. Primary heat exchanger: Handles central heating
2. Secondary heat exchanger: Provides domestic hot water

Can You Unblock a Heat Exchanger?

Yes, blocked heat exchangers can often be cleared, but this requires professional intervention. The process involves:

• Chemical cleaning: Using specialised cleaning solutions such as powerflush
• High-pressure flushing: Removing stubborn debris and buildup
• Descaling treatments: Dissolving limescale deposits
• Component replacement: If damage is too severe

Is It Worth Replacing a Boiler Heat Exchanger?

The decision depends on several factors:

When Replacement Makes Sense

• The boiler is less than 10 years old: The remaining components likely have good life left
• Cost is reasonable: Replacement cost is significantly less than a new boiler
• Other components are functioning well: No other major issues present

When to Consider a New Boiler

• The boiler is over 15 years old. Other components may fail soon
• Multiple issues present: Several components need attention
• Efficiency concerns: Older boilers may not meet current standards

Maintaining Your Heat Exchanger

Regular maintenance is essential for optimal performance:

Annual Service Requirements

1. Professional inspection: A Gas Safe engineer checks all components
2. Cleaning and descaling: Removes buildup and debris
3. Pressure testing: Ensures system integrity
4. Safety checks: Verifies proper operation and safety features

DIY Maintenance Tips

1. Monitor water pressure: Check the pressure gauge regularly
2. Bleed radiators: Remove air from the system when needed
3. Check for leaks: Regular visual inspections around the boiler
4. Listen for unusual sounds: Early detection of potential issues

Professional Heat Exchanger Services

When selecting a heating engineer for heat exchanger work, ensure they:

• Hold Gas Safe registration: Legal requirement for gas work
• Have relevant experience: Familiar with your boiler type
• Provide written quotes: Clear pricing and scope of work
• Offer guarantees: Warranty on parts and labour
• Maintain insurance: Protection for your property

How to Maximise Heat Exchanger Efficiency?

To get the most from your heat exchanger:

Use Smart Heating Controls

Smart thermostats and modern heating controls let you tailor your heating schedule to your lifestyle. By only heating your home when you need it, and at the right temperature, you reduce unnecessary strain on the boiler and the heat exchanger, extending its life and improving efficiency.

Insulate Your Home

Good insulation is one of the easiest ways to improve overall heating efficiency. When your walls, loft, and even floors retain heat better, your boiler doesn't have to work as hard to keep your home cosy. This lowers the workload on the heat exchanger, reducing wear and saving on energy bills.

Balance Your Radiators

If some rooms in your house are much warmer than others, your system may not be balanced. Balancing your radiators ensures that hot water flows evenly throughout your home, improving comfort and reducing the risk of overloading any part of the system, including the heat exchanger.

Book Regular Maintenance

Annual servicing by a gas heating engineer is essential. They'll check the heat exchanger for scale, corrosion, or blockages and clean it if needed. Regular maintenance not only keeps the heat exchanger efficient but can also spot small issues before they turn into expensive repairs.

By taking these steps, you can keep your heating system running efficiently, reduce energy costs, and extend the lifespan of your boiler and its crucial components.
