How to Fix Worcester Boiler Fault Codes?

Understanding Worcester Bosch Boiler Error Types

Worcester Bosch categorises their fault codes into five distinct types, each requiring different responses:

Locking Errors

This indicates major faults requiring immediate attention. When your boiler develops a locking error, it will show a flashing fault code alongside a triangle warning symbol. A fixed "cause" code will also appear to indicate the specific problem. Once the fault has been repaired, the boiler must be reset to clear the code and restore regular operation.

Blocking Errors

This error causes the boiler to stop functioning completely without initially displaying a code. Press the return button to view the error code. Once resolved, the boiler typically resumes normal operation.

Fault Errors

Fault codes appear as alphanumeric codes indicating specific system faults. These help identify which component or system requires attention.

Maintenance Codes

This begins with 'H' and signals that servicing is needed. Your boiler continues to operate, but it requires professional attention to prevent future problems.

Cause Errors

These errors are three-digit numbers providing additional diagnostic information, usually accessible through the information menu.

Most Common Worcester Boiler Fault Codes

EA 227 - No Flame Detected

This fault indicates the boiler failed to ignite properly. Common causes include gas supply interruptions, faulty ignition electrodes, or blocked condensate pipes, particularly during freezing weather.

What to check: Look for frozen condensate pipes outside your property. Pour warm (not boiling) water over any ice blockages to clear them safely.

E9 224 - Overheat Lockout

Your boiler has overheated, typically due to poor water circulation or pump issues. This safety feature prevents damage to internal components.

What to check: Ensure all radiator valves are open and check your system pressure on the gauge. The reading should be around 1-1.5 bar when cold.

A1 281 - Pump Issues

This code indicates your pump is stuck or running dry, often caused by air in the system or mechanical pump failure.

What to check: Listen for unusual noises from the boiler. If you hear gurgling or banging, air may be trapped in your system.

D5 / EA225 - Blocked Condensate Pipe

Modern condensing boilers produce condensate that must drain away safely. During cold weather, these pipes can freeze and block.

What to check: Locate the white plastic pipe (usually 22mm diameter) running from your boiler to an outside drain. Look for ice blockages and clear them with warm water.

C6 215 - Fan Speed Problems

The fan isn't operating at the correct speed, which affects proper combustion and flue gas removal.

What to check: Listen for unusual fan noises. However, fan issues typically require professional diagnosis and repair. Explore our latest blog: “How to Fix a Boiler Fan Fault”, a step-by-step guide to identifying issues and restoring your heating system’s performance.

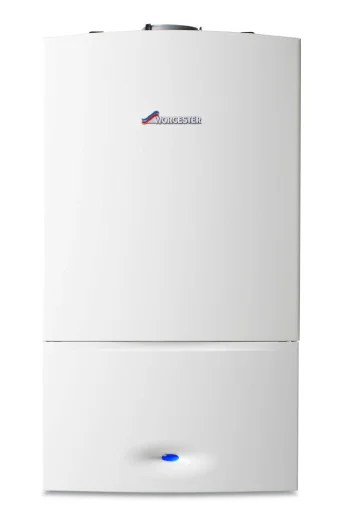

Worcester Bosch Greenstar i System & Combi Error Codes

The Worcester Bosch Greenstar i is one of the UK's most popular boilers, with over a million installations nationwide. Known for its reliability and efficiency, this model has been a trusted choice for small to medium homes. It comes in two main versions:

• Greenstar 24i – a 24kW combi boiler, perfect for smaller flats and apartments.
• Greenstar 30i – a 30kW combi boiler, ideal for average-sized family homes with 2–3 bedrooms and one bathroom.

The Greenstar i range also includes system boiler options, and both the system and combi versions use the same set of error codes. Although the Greenstar i has recently been replaced by the Greenstar 4000, many UK homes still rely on this model.

If your boiler displays a fault code, this guide will help you identify its meaning and determine whether you need a Gas Safe engineer to repair it.

Worcester Bosch Greenstar i Error Codes

Error Code	Meaning / Possible Fault
A1	Pump stuck or running dry
A7	Domestic hot water sensor defect
A8	Heat control module (HCM) is invalid
C1	Fan is stopping during operation
C4	Control box/HCM is defective, or the fan failed to stop
C6	Boiler's Fan speed too high or too low
C7	Fan not running on start-up
CC	Outdoor sensor defect
D4	Primary flow temperature is rising too fast
E2	Flow temperature sensor fault
E9	Flue or high-limit thermostat activated; water temp exceeds 95°C
EA	No ionisation/flame detected after ignition
FA	Flame detected after the gas valve closed
F0	Gas valve or control box error
F7	Ionisation was detected before the burner started
FD	Power supply interrupted
9U	Control box defective or loose

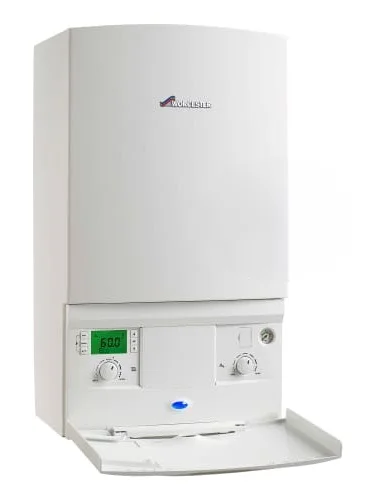

Worcester Bosch Greenstar Si Compact Error Codes

The Si Compact offers the same reliability as the Greenstar i but in a smaller casing, making it ideal for kitchen cupboards and compact spaces.

Error Code	Meaning / Possible Fault
9A 362	Incorrect HCM fitted
9U 233	HCM/code plug error
A1 281	Pump stuck or running with air in the system
B7 257	Internal/control board error
C1 264	Airflow stopped during operation
C6 215	Fan running too fast
C7 214	Fan not running
D1 240	Return sensor error/short circuit
D4 271	Flow and safety sensor temperature difference too high
E2 222	Flow sensor short circuit
E5 218	Flow temperature too high
E9 219 / E9 224	Safety sensor fault or flue gas thermostat overheating
EA 227	No flame detected after ignition
F0 237	Internal error
F7 228	False flame detected
FA 306 / 36	Gas valve leak or false flame fault
FD 231	Power fault/interruption

Worcester Bosch CDi Classic & Compact Error Codes

The CDi Classic was a flagship Worcester Bosch boiler, available in both regular and combi versions, before being replaced by the Greenstar 8000 Style. The CDi Compact is a smaller version designed for modern homes with limited space.

Some common CDi error codes include:

Error Code	Meaning / Possible Fault
B1	Code plug not detected
C6	Fan speed is too low or too high
E2	Flow sensor fault
E9	Safety temperature limiter triggered
EA	Flame not detected (possible gas supply issue)
FA	Flame detected after gas shut-off (gas valve fault)
FD	Accidental reset button press

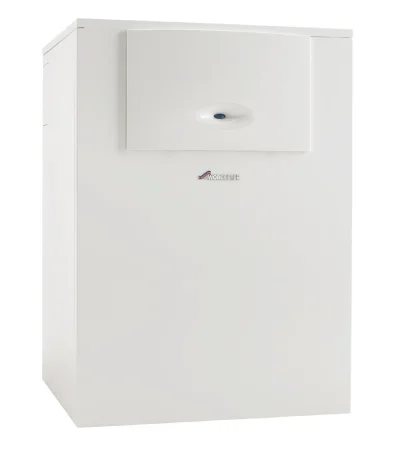

Worcester Bosch CDi Highflow Error Codes

The CDi Highflow is a floor-standing combi boiler designed for large homes with high hot water demand. Known for its powerful hot water flow rates, it remains a popular choice.

Some key error codes:

Error Code	Meaning / Possible Fault
A1	Pump dry-run or air in the system
A5 / A7	NTC sensor defect (tank or DHW)
C6	Fan defect
D5	Condensate pump failure
E9	Safety temperature limiter tripped
EA	Flame not detected
FD	Reset button pressed accidentally

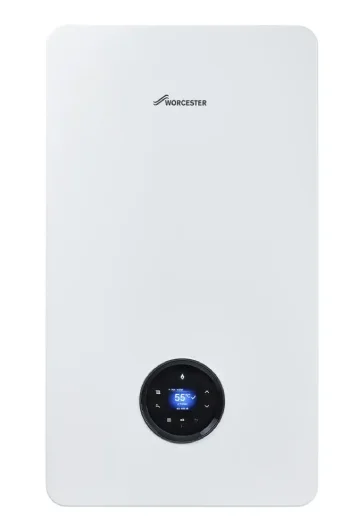

Worcester Bosch 8000 Style Error Codes

The Worcester Bosch 8000 Style is the brand's modern flagship, available in outputs from 30kW to 45kW. Stylish and powerful, it suits larger homes with multiple bathrooms.

Worcester boiler faults are more advanced and can include:

Error Code	Meaning / Possible Fault
1017 W	Low water pressure
1021 / 1022 B	Hot water sensor
1073 / 1074 W	Flow temperature sensor short circuit / no signal
227 V	No flame signal after ignition
228 V	Flame signal without flame present (possible valve issue)
2927 B	Flame failure during operation
2971 B	System pressure too low

Basic Worcester Boiler Troubleshooting Steps

Check System Pressure

Your boiler's pressure gauge should read between 1 and 1.5 bar when the system is cold. Low pressure is one of the most common causes of boiler problems.

To repressurise your system:

1. Locate the filling loop (flexible braided hose with valves at each end)
2. Slowly open both valves until the pressure reaches 1.2 bar
3. Close both valves and check that the system pressure stabilises

Inspect for Frozen Condensate Pipes

During winter, condensate pipes frequently freeze. Look for the white plastic pipe running from your boiler to an external drain.

If frozen:

1. Pour warm water slowly along the length of the pipe
2. Never use boiling water, as this can crack the pipe
3. Make sure to insulate the pipe to prevent future freezing

Read our latest blog: “Frozen Condensate Pipe”, causes, warning signs, and simple solutions to keep your boiler running smoothly this winter.

Reset Your Worcester Boiler

Many Worcester Bosch boilers have a reset button or require turning the temperature dial to the reset position for 3 seconds.

Check Thermostat Batteries

For wireless thermostats showing A21 error codes, replace the batteries and ensure the thermostat is within range of the boiler's receiver.

When to Call a Professional Heating Engineer

Specific fault codes always require professional attention:

• EA codes: No flame detection issues
• F7 codes: False flame detection
• Gas valve errors: Any fault involving gas components
• Internal component failures: PCB, pump, or fan problems

Preventive Maintenance for Worcester Boiler Problems

Annual Boiler Servicing

Regular servicing identifies potential problems before they cause breakdowns. During a boiler service, engineers clean components, check safety devices, and test system performance.
Benefits include:

• Maintaining manufacturer warranties
• Improved energy efficiency
• Extended boiler lifespan
• Early fault detection

System Chemical Treatment

Every 2-3 years, your heating system benefits from chemical cleaning and the addition of fresh inhibitor. Poor water quality causes the majority of boiler breakdowns through:

• Limescale buildup in heat exchangers
• Corrosion of internal components
• Blocked pipes and valves
• Reduced system efficiency

Regular System Checks

Monthly checks help identify issues early:

• Monitor system pressure
• Listen for unusual noises
• Check for visible leaks
• Test heating controls
• Inspect external condensate pipes before winter

Understanding Worcester Boiler Symbols

Worcester boilers display various symbols alongside fault codes:

Siphon fill mode	Triangle with wavy lines - normal safety feature lasting about 15 minutes
Key lock symbol	Child lock activated on newer Greenstar models
Maximum / minimum mode	Flame symbols indicating extreme operating conditions
Air purge mode	Circular arrow - automatic system bleeding process
Service symbol	Spanner icon indicating maintenance is due

Protecting Your Home Investment

Worcester boilers represent significant investments in your home's comfort and value.

Understanding fault codes empowers you to:

• Respond appropriately to different error types
• Avoid unnecessary emergency call-out charges
• Communicate effectively with heating engineers
• Maintain your boiler's warranty conditions

Regular maintenance costs considerably less than emergency repairs or premature boiler replacement. Our experience shows that well-maintained Worcester boilers easily exceed their expected 15-year lifespan.
