How to Fix Ideal ICOS Fault Codes?

Understanding the Ideal ICOS Boiler's Reputation

The Ideal ICOS boiler carries a reputation that divides heating engineers and homeowners alike. Launched in 2003 as one of the first successful condensing boiler designs, it was ahead of its time, arriving two years before condensing boilers became mandatory in 2005. However, this innovative heating system has earned a mixed reputation due to recurring fault codes that can leave homeowners frustrated and heating engineers scratching their heads.

The Ideal ICOS boiler's mixed reputation stems from two primary issues that have plagued the system since its launch.

The Control Board Problem

The original design featured a poorly engineered control board that failed in virtually every boiler sold within four to five years of installation, often just after the warranty expired. This widespread failure gave the ICOS a terrible start in the market and damaged consumer confidence.

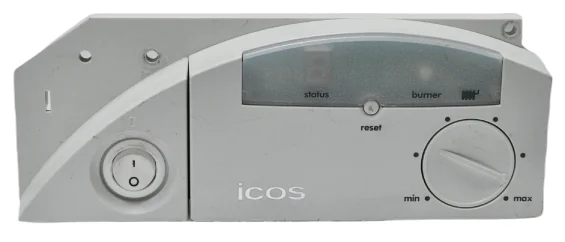

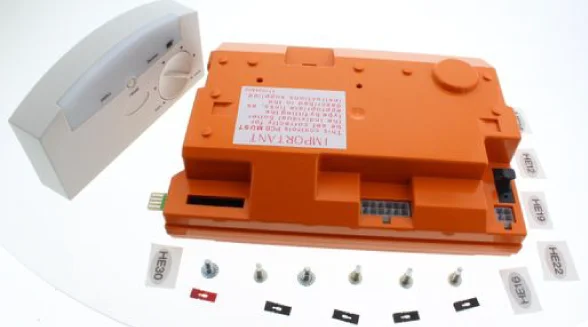

Fortunately, Ideal recognised the problem and redesigned the control board multiple times. The Version 9 control board, housed in an orange-coloured case, proved to be broadly reliable and resolved most of the early electronic failures.

Opaque Error Messages

The second major issue involves the frustratingly vague error messages displayed when the boiler fails.

If there's a boiler problem, getting support from a professional boiler repair service not only restores your home's heating but also prevents further complications that may arise from unresolved faults.

The Most Common Fault Code: Alternating L and F

When dealing with icos boiler fault codes, the alternating L and F display is by far the most frequent issue you'll encounter. This 'catch-all' code means little more than "something went wrong", the boiler has gone out and won't relight.

While the fault-tracing chart provides a long list of possibilities to investigate, the reality is that this list isn't even definitive. The L/F fault code can be broken down into two distinct categories:

Category 1: Genuine Combustion Failure

The boiler genuinely failed to light, the control system correctly detected this failure, and properly shut down the system while displaying the L/F error code.

Category 2: False Flame Detection Failure

The boiler lights correctly, but a fault in the control system leads it to believe the boiler didn't light. Even though combustion is actually present, the faulty control system incorrectly shuts down the boiler and displays L/F.

Most L/F errors fall into Category 2, which means the task isn't to work out why it didn't light (because it did), but to determine why the control system is failing to detect genuine combustion.

Diagnosing Category 1: Genuine Combustion Failure

Listen for Ignition

The simplest and safest way to determine if your boiler is lit is to listen carefully. An igniting boiler makes a noticeable, quiet 'whoomph' noise as ignition occurs. If the system goes to L/F without making this sound, combustion genuinely failed.

Check the Condensate Drain

The first component to inspect is the condensate drain. If blocked, the boiler will run briefly and then shut down, displaying L/F as the condensate level backs up and interferes with combustion.

Condensate drains cause endless trouble for ICOS owners. When run outside, they can be blocked with ice during cold weather. Even when connected entirely indoors to nearby drains, they can be blocked with sink fat or other debris.

Verify Gas Supply

Confirm there's actually a gas supply present. Check whether other gas appliances in your home are still working normally.

Component Failure Investigation

If the boiler still won't light after checking the condensate drain and gas supply, there's likely a component failure within the system. The gas control valve is the most common culprit, but before replacing it, check that the thin plastic hose connection to the gas valve is clear. Water, condensation, or kinked hoses can affect the gas/air ratio and easily prevent combustion.

Diagnosing Category 2: False Flame Detection Failure

When your boiler lights but then shuts down with L/F even though it's actually alight, the flame detection system isn't working properly.

Flame Detection Electrode Issues

The flame detection electrode is separate from the ignition electrode and can fail in several ways:

• Ceramic insulation cracks: Over time, the ceramic insulation can develop cracks that affect performance
• Water contamination: If water has been poured through the heat exchanger during servicing, the electrode can become wet and cause control board failure
• Incorrect positioning: The electrode must be positioned 25mm (±2mm) from a straight edge laid across the top of the chamber

Wiring Problems

The lead connecting the detection electrode runs directly against the heat exchanger for approximately 8 inches. Over time, this insulation tends to break down, leading to incorrect flame rectification current values. This makes the boiler incorrectly decide there's no combustion even when there is, resulting in L/F lockout.

Ionisation Electrodes

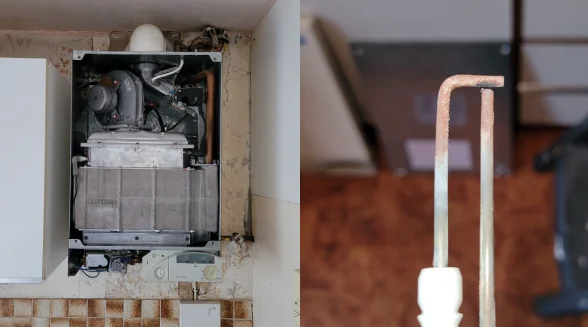

The ICOS heat exchanger contains two "ionisation electrodes" colloquially known as 'coat hangers' due to their wire coat hanger-like shape. Ideal has issued a formal notice to replace these with an updated design at the first opportunity, usually during the next service. This update likely addresses nuisance L/F lockouts.

Discover practical tips in our blog, ‘How to Fix an Ignition Fault on a Boiler,’ and learn how to get your heating system back up and running.

Flow Pipe Temperature Sensor

The flow pipe temperature sensor must be working correctly. The control board appears to monitor for rising flow pipe temperature after ignition to confirm the pump is working and a water circuit is present. If no temperature rise is detected, the system shuts down combustion and displays L/F.

Ensure the flow sensor hasn't failed and is correctly fitted onto the flow pipe.

Gas Injector Contamination

Spider webs can partially block the gas injector, affecting combustion and triggering fault codes. Small spiders can access boiler components, and their webs can seriously disrupt gas flow through the ICOS jet.

Explore our 'Boiler Error Codes' blog section to discover what different error codes mean on various boilers across London, and how to tackle them effectively.

Additional ICOS Reliability Issues

Beyond the L/F error code, other factors contribute to the ICOS's mixed reputation.

Condensate Trap Maintenance

The condensate trap on condensing boilers, particularly those with aluminium heat exchangers, collects debris and requires removal and cleaning during annual services. On the ICOS, the condensate trap location is awkward, with poor access for removal and cleaning.

The installation manual permits boiler installation as close as 4 inches from a surface below, making trap removal extremely difficult. Replacing the trap and achieving watertight pipe joints becomes nearly impossible with tight access.

Service technicians under time pressure often reluctantly skip trap cleaning because refitting it can be extremely time-consuming. After several years of skipping this "just this once," the trap fully blocks, and the boiler stops working.

Want to keep your boiler running safely and efficiently all year round? Don’t miss our expert guide on boiler maintenance advice packed with practical tips to help you extend your boiler’s lifespan and avoid costly repairs.

Professional Diagnosis and Repair

While this guide provides comprehensive troubleshooting information, many ideal icos boiler fault codes require professional diagnosis and repair. The complexity of the flame detection system, gas controls, and electronic components means that attempting DIY repairs can be dangerous and potentially illegal.

Gas heating engineers have the expertise and equipment necessary to diagnose and repair ICOS boiler problems safely. They can also access manufacturer technical bulletins and updated components that may not be available to homeowners.

Getting Your ICOS Back on Track

The Ideal ICOS boiler, despite its reputation, can provide reliable heating when properly maintained and serviced.

Regular annual servicing, including proper condensate trap cleaning and electrode maintenance, significantly reduces the likelihood of experiencing persistent fault codes. When problems do arise, prompt professional attention prevents minor issues from developing into major failures.

Working with experienced heating engineers who understand the ICOS's quirks ensures faster diagnosis and more effective repairs.
