How Magnetic Boiler Filters Can Boost Your Boiler Efficiency?

What Is a Magnetic Boiler Filter?

A magnetic boiler filter is a device fitted to your central heating system that captures metallic debris before it can circulate through your boiler and radiators. These filters use powerful magnets to attract iron particles, rust, and other ferrous materials that naturally occur as your system ages.

The filter attaches to the return pipe, the pipe that brings water back to your boiler after it has heated your radiators. By positioning the filter here, it catches debris before it re-enters the boiler, preventing the circulation of harmful particles throughout your system.

If you are looking for a magnetic system filter installation, call the serviceteam.

How Magnetic Heating Filters Work?

While chemical treatments prevent much of this build-up, ferrous particles need physical removal through magnetic filtration.

The magnetic filter's strong magnets attract these metallic particles, storing them safely away from your system. This prevents the debris from settling in radiators, blocking pipes, or damaging your boiler's internal components.

Signs You Need a Central Heating Magnetic Filter

Several warning signs indicate your heating system would benefit from magnetic filtration:

• Cold spots on radiators:
  If radiators feel cool at the top but warm at the bottom, sludge is likely blocking water flow. This reduces heating efficiency and creates uneven temperatures.
• Strange boiler noises:
  Gurgling, banging, or whistling sounds often indicate debris interfering with water circulation. These noises typically worsen over time as more sludge accumulates.
• Regular system leaks:
  Sludge can cause seals to fail and pipes to corrode, leading to persistent leaks that require constant attention.
• Poor heating performance:
  Systems struggling to reach desired temperatures or taking longer to heat up may be fighting against sludge blockages. Check out our blog, ‘How to remove sludge in a radiator?’ here.
• High energy bills:
  When your boiler works harder to overcome system blockages, energy consumption increases significantly.

Ignoring these signs leads to expensive repairs or premature boiler replacement. The longer problems persist, the more damage occurs throughout your entire heating system.

Boiler Magnetic Filter Installation Process

Professional installation ensures your magnetic filter works effectively and doesn't void your boiler warranty. Professional gas heating engineers typically follow these steps:

• System drainage: The engineer drains water from your central heating system to create safe working conditions.
• Pipe marking and measurement: They identify the optimal position on the return pipe and measure the space needed for your specific filter size.
• Pipe modification: Unnecessary pipework is cut away to accommodate the filter housing and connections.
• Valve installation: Isolation valves are fitted to each open pipe end, allowing future maintenance without draining the entire system.
• Filter connection: The magnetic filter is positioned between the valves and securely connected to ensure proper water flow.
• System re-pressurisation: Once installation is complete, the system is refilled and pressurised to normal operating levels.

Most installations take 2-3 hours and can be completed during new boiler installation or added to existing systems with adequate space.

Benefits of Magnetic Filters for Central Heating Systems

Installing a central heating magnetic filter provides numerous advantages for London homeowners and landlords:

Improved System Efficiency

Clean heating systems operate more efficiently, reducing energy consumption and lowering bills. Magnetic filters maintain optimal water flow, ensuring radiators heat evenly and boilers don't overwork.

Extended Equipment Life

By preventing sludge circulation, magnetic filters protect expensive components like pumps, heat exchangers, and control valves. This extends your boiler's operational life and delays costly replacements.

Reduced Maintenance Costs

Instead of expensive system cleanses or component replacements, you only need annual filter cleaning. This routine maintenance is far more affordable than emergency repairs.

Enhanced Boiler Warranties

Some manufacturers offer extended warranties when magnetic filters are installed with new boilers.

Better Indoor Comfort

Consistent heating performance means more comfortable living conditions. No more cold spots, uneven temperatures, or waiting for radiators to warm up properly.

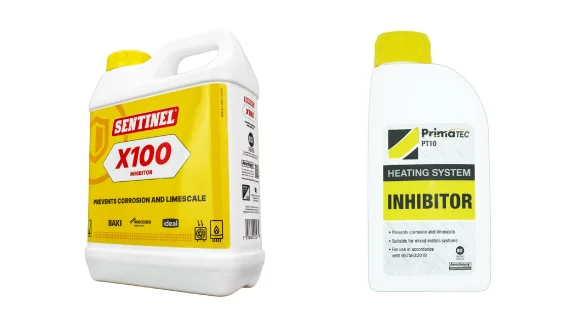

Understanding Limescale Inhibitors

Limescale inhibitors are chemical treatments that prevent mineral deposits from forming inside your heating system.

How Limescale Inhibitors Work?

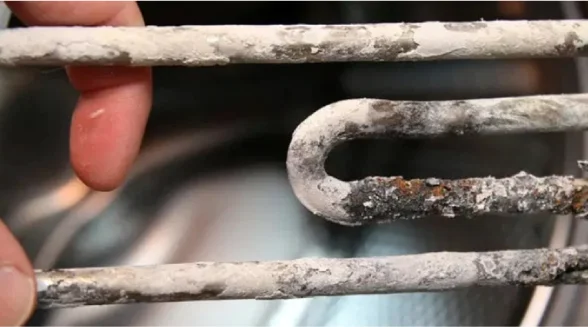

These liquid chemicals circulate through your system, coating internal surfaces and preventing calcium and magnesium deposits from adhering to pipes and components. They also help break down existing deposits gradually.

Adding an Inhibitor to Your System
Heating engineers can introduce limescale inhibitors through several methods:

• Direct radiator addition: Removing radiator caps and adding inhibitor directly
• Loft tank treatment: Adding inhibitor to header tanks in older systems
• Magnetic filter dosing: Some filters include dosing chambers for easy inhibitor addition

The method depends on your system type and the accessibility of different components.

Benefits of Limescale Treatment

Chemical inhibitors provide complementary protection to magnetic filtration:

• Prevents scale formation: Stops limescale before it can affect heat exchanger efficiency
• Improves water flow: Keeps pipes clear and maintains optimal circulation
• Protects all materials: Guards against corrosion in copper, steel, and aluminium components
• Long-lasting protection: Annual top-ups maintain continuous system protection

Do You Need Both Magnetic Filters and Inhibitors?

For comprehensive system protection, most heating engineers recommend using both magnetic filters and chemical inhibitors. Each addresses different types of contamination:

Magnetic filters handle metallic particles, rust, and ferrous debris that magnets can attract. Chemical inhibitors prevent limescale, protect against boiler corrosion, and tackle non-magnetic contamination.

Together, they provide complete protection against the two main causes of heating system deterioration. This dual approach maximises efficiency, extends equipment life, and minimises maintenance requirements.

Cost-Effectiveness of Magnetic Boiler Filters

The investment in magnetic filtration pays dividends through reduced operating costs and avoided maintenance and repair expenses.

The filter's protection easily justifies the initial expense through avoided costs and improved efficiency.

Maintenance Requirements for Magnetic Filters

Magnetic filters require minimal maintenance to remain effective:

Annual Cleaning

During your annual boiler service, heating engineers clean the magnetic filter by:

• Isolating the filter using shut-off valves
• Removing the magnetic core
• Washing away accumulated debris
• Inspecting components for wear
• Reinstalling the clean filter

This process takes 15-20 minutes, and you can get cost benefits when combined with routine servicing.

Choosing the Right Magnetic Filter

Several factors influence magnetic filter selection:

• Filter Capacity
  Larger systems need higher-capacity filters to handle greater debris loads. Consider your property size and number of radiators when selecting filter capacity.
• Installation Space
  Measure available space on your return pipe. Compact filters suit tight installations, while larger units offer superior filtration capacity.
• Brand Reliability
  Established manufacturers like Adey, Fernox, Flomasta and Spirotech offer proven reliability and comprehensive warranties. Choose brands supported by local heating engineers.

• Additional Features
  Some filters include inhibitor dosing chambers, drain valves, or service indicators. These features add convenience but increase initial costs.

Professional Installation vs. DIY

While magnetic filters might appear simple, professional installation offers important advantages:

Check out our blog, “Magnetic Boiler Filters: Are They Worth Installing?” to learn how they protect your heating system, improve efficiency, and help cut down on repair costs.

New vs. Existing Magnetic Heating Systems

New boiler installations benefit most from immediate magnetic filter installation. Existing systems may need preliminary cleaning before filter installation proves effective.

Protecting Your Heating Investment

Magnetic boiler filters and limescale inhibitors are worthwhile investments for virtually all central heating systems. They prevent expensive damage, improve efficiency, and extend equipment life far beyond their modest cost.

For London homeowners facing rising energy costs and ageing heating infrastructure, magnetic filtration provides affordable protection against costly system failures. The combination of magnetic filters and chemical inhibitors offers comprehensive protection that pays for itself through avoided repairs and reduced energy consumption.

Read our blog, “Discoloured Water in Your Central Heating System,” to learn what it means, why it happens, and how to fix it.

Get a Quote from Serviceteam & Install Your System Filter

If you need a fixed-price quote? Book serviceteam online.

Contact qualified heating professionals to discuss magnetic filter installation and determine the best protection strategy for your specific property and heating system requirements.
